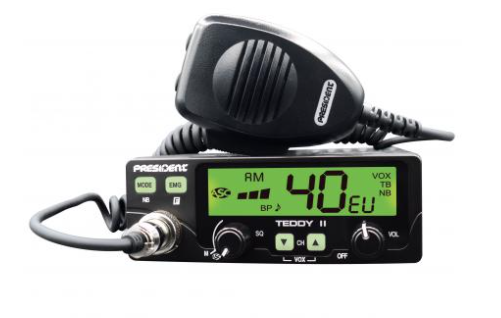

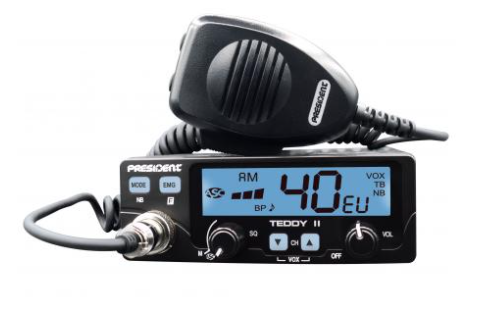

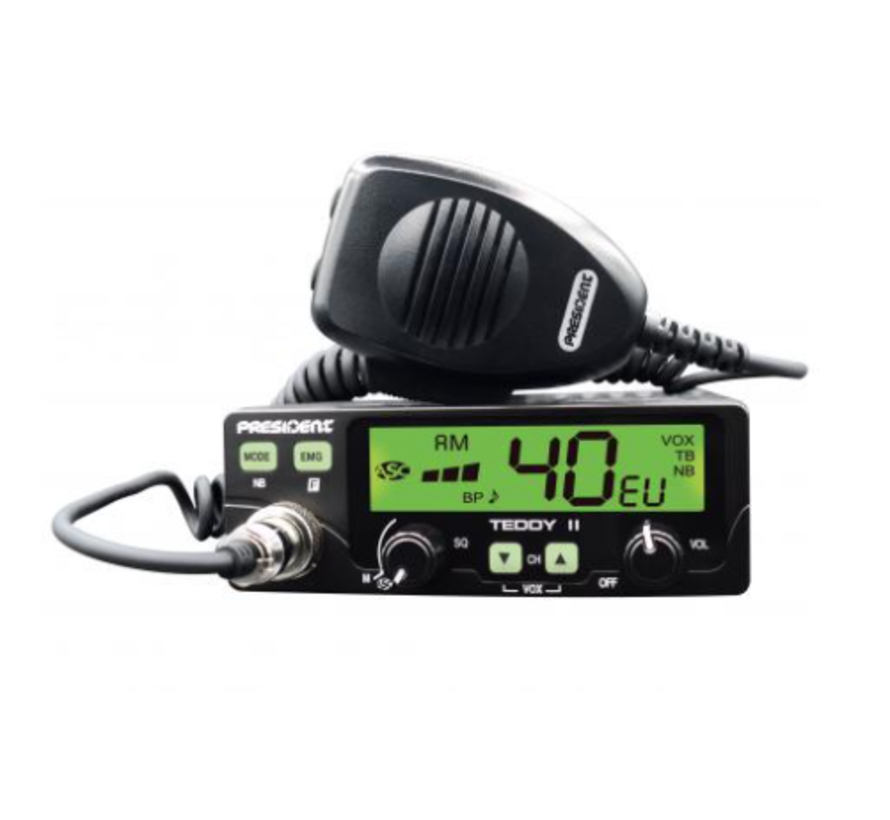

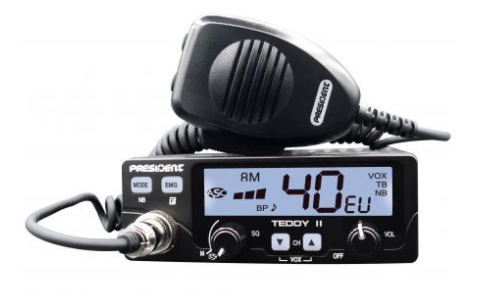

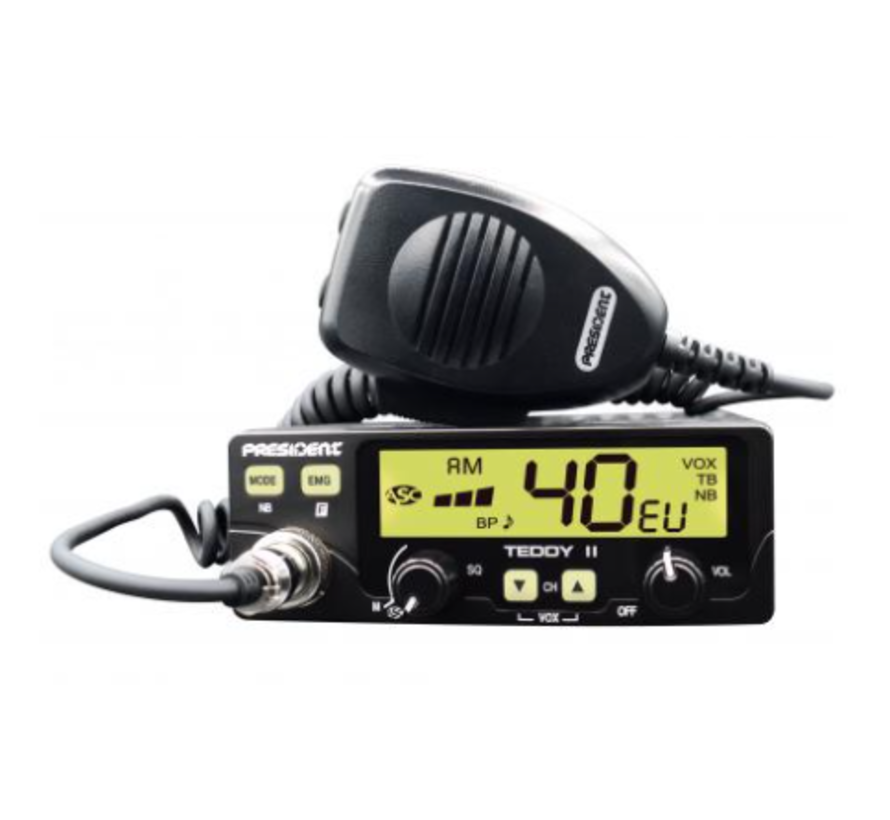

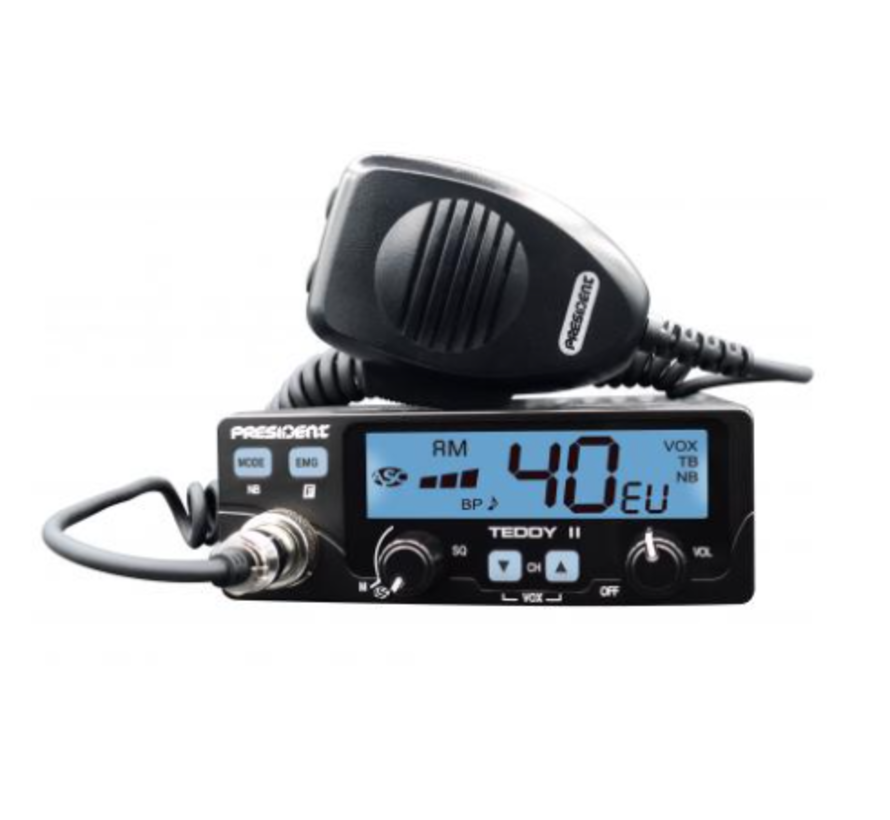

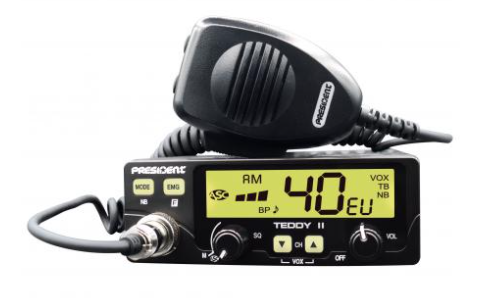

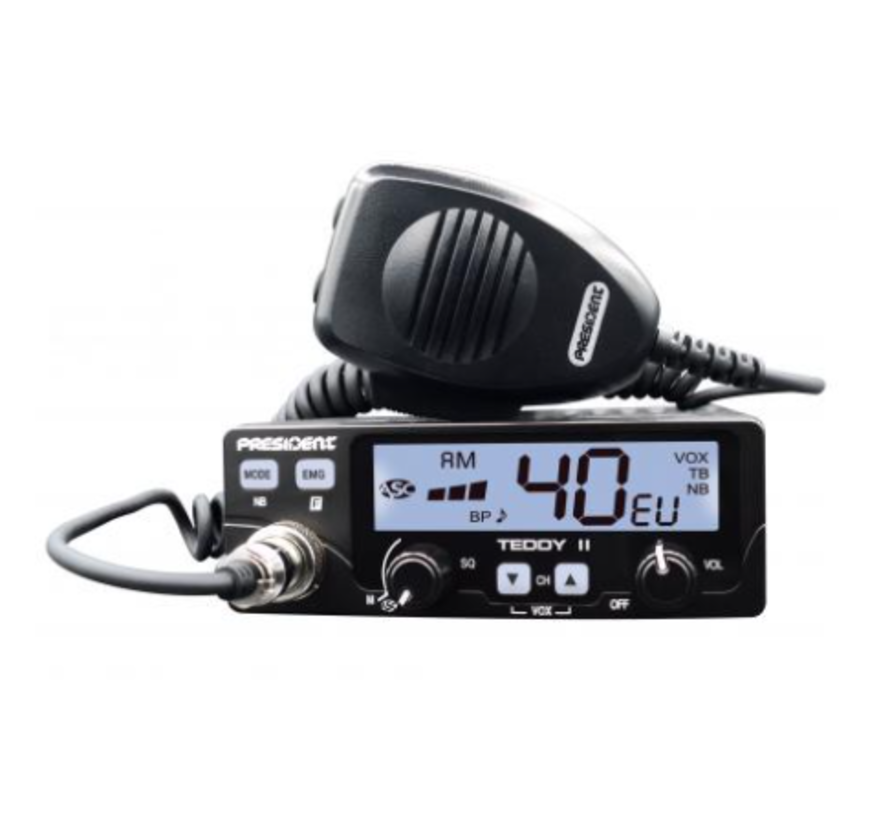

President Teddy II
With this president teddy II you have a very user-friendly CB in your possession! The successor to the President Teddy features a built-in vox function for hands-free use. After choosing the AM/FM modulation and the desired channel, you only have 2 buttons to operate with this president teddy II. The noise reduction (squelch) and the volume knob. In short, super easy to use.
Attention, this president teddy II is suitable for 12V connection voltage, for use on 24V you need a converter to 12V.
Benefits
- Renewed version
- 40 channels
- LCD Display
- 7 different background colors
- VOX function
Specifications
| Supply: | 13.2 V |
| Number of channels: | 40 |
| AM: | yes |
| FM: | yes |
| Channel selector: | up/down |
| Volume: | volume adjustment and ON/OFF |
| Squelch: | manual squelch |
| ASC: | yes |
| Display: | digital |
| VOX: | yes |
| Filter ANL: | yes |
| Filter NB: | yes |
| F / Menu function key: | yes |
| Key beep: | yes |
| Preset channel: | EMG (customizable) |
| Microphone plug: | front (6 pins) |
| External loudspeaker jack: | yes |
| Size: | 125 (W) x 151 (D) x 45 (H) |
| Gewicht: | 0,9 kg |
Technical specifications
| GENERAL | |
| Aantal kanalen: | 40 |
| Modulation modes: | AM / FM |
| Frequency ranges: | from 26,965 MHz to 27,405 MHz |
| Antenna impedance: | 50 ohm |
| Power supply: | 12 V |
| Accessories supplied: | Ultra light electret microphone with support |
| Filter: | ANL (Automatic Noise Limiter) built-in |
| TRANSMISSION | |
| Frequency allowance: | +/- 200 Hz |
| Carrier power: | 4 W AM / 4 W FM |
| Transmission interference: | inferior to 4 nW (- 54 dBm) |
| Audio respons: | 300 Hz to 3 KHz |
| Emitted power in the adj. channel: | inferior to 20 μW |
| Microphone sensitivity: | 7 mV |
| Drain: | 1.7 A (with modulation) |
| Modulated signal distortion: | 2% |
| RECEPTION | |
| Maxi. sensitivity at 20 dB sinad: | 0.5 µV - 113 dBm (AM) / 0.35 µV - 116 dBm (FM) |
| Frequency response: | 300 Hz to 3 kHz |
| Adjacent channel selectivity: | 60 dB |
| Maximum audio power: | 2.5 W |
| Squelch sensitivity: | min 0,2 μV - 120 dBm / maxi 1 mV - 47 dBm |
| Frequency image rejection rate: | 60 dB |
| Intermediate frequency rej. rate: | 70 dB |
| Drain: | 160 ~ 420 mA |
Download here the manual.
